SIEM Data Export
Overview
The SIEM Data Export feature allows administrators to stream DNS query and event data from ScoutDNS directly into their SIEM or log analytics platform for advanced analysis, threat correlation, and compliance reporting.
ScoutDNS currently supports HTTP Event Collector (HEC)–based integrations, including:
Splunk HEC
Custom / Generic HEC destinations
Huntress SIEM
How It Works
ScoutDNS continuously streams query log data as JSON payloads over HTTPS to the configured HEC endpoint. Each record includes DNS query details such as timestamps, client information, policy actions, and classifications. This enables direct ingestion into platforms like Splunk Enterprise / Cloud or other SIEM systems supporting HEC-compatible APIs.
Prerequisites
Before configuring export:
You must have license type for SIEM Export
You must have Admin or Tenant Admin permissions.
Your destination system must expose a reachable HEC endpoint (HTTPS recommended).
A valid HEC token is required for authentication.
Configuration Options
When creating a new SIEM export stream, administrators can customize how and what data is sent:
Endpoint Settings
Admins define the destination endpoint for the stream:
Splunk HEC – optimized for Splunk event structure.
Custom / Generic HEC – for other compatible SIEM or log management systems.
Huntress
Enter the endpoint URL (e.g., https://splunk.company.com:8088/services/collector)
and HEC token.
You can use the Test button to ensure the connection is successful.
Data Type
Choose the type of data to include in the export. Admins can select one or multiple data types per stream:
All Data – sends all DNS query logs, including allowed and blocked requests.
Threat Blocks – sends only events classified as security threats (e.g., malware, phishing, C2).
Content Blocks – sends only policy-driven content filtering blocks (e.g., adult content, social media, streaming).

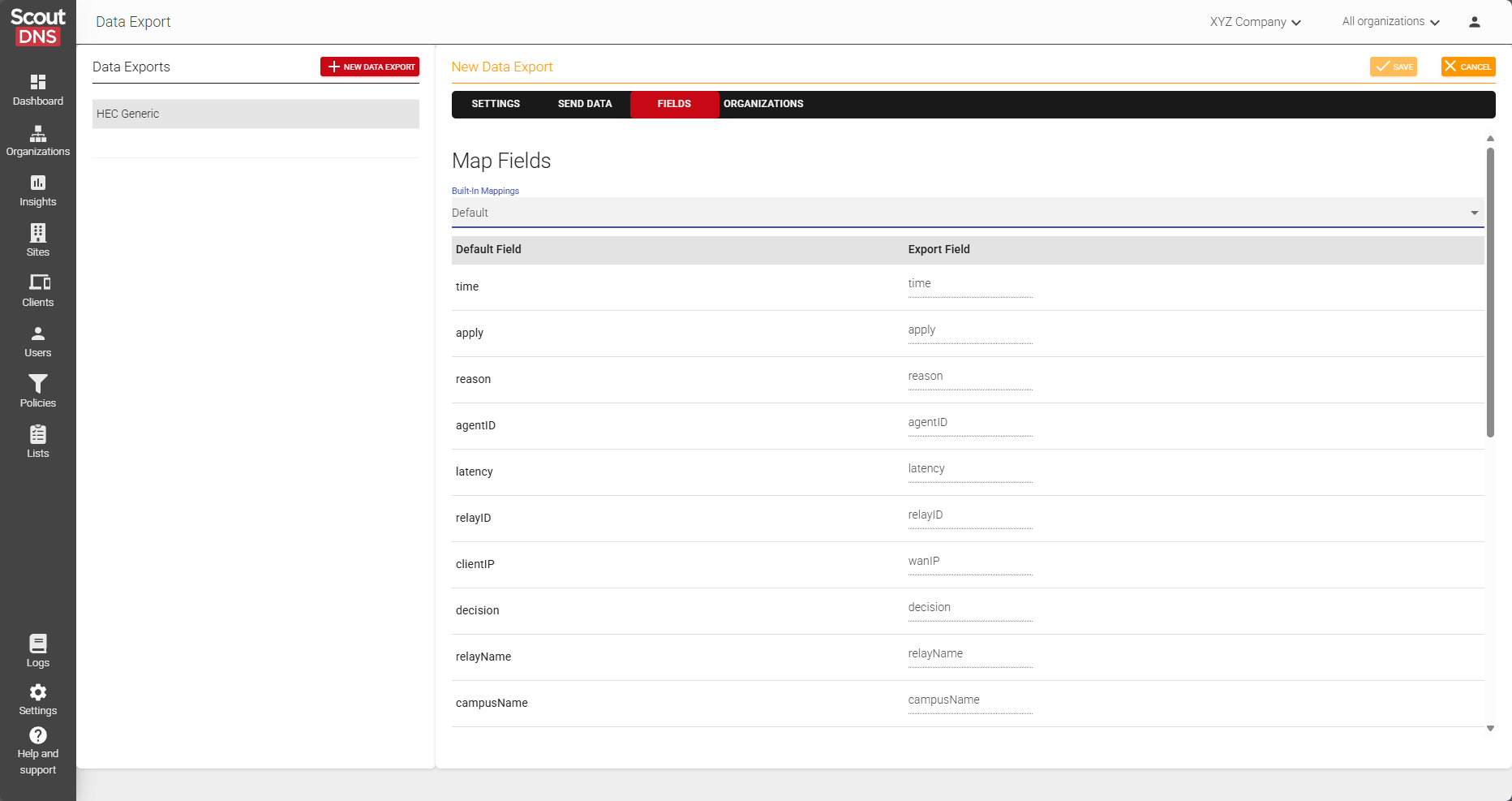

Fields
In the Fields tab, we can select data and labels on export.
Default - Default labels as in logs tab
ECS - ECS compatible labels
Custom - Select data and labels. Any label not selected will be dropped on export.
Organization Scope (MSP Only)
If your account is configured for MSP / Multi-Organization management, you can define export scope. This allows MSPs to maintain separate exports for some clients or combine all into a single SIEM destination.
All Organizations – sends data for every managed organization.
Specific Organizations – choose one or more organizations to include in the stream.
Configure Huntress SIEM Export
From your Huntress
In SIEM Source Management select Add Source and choose Generic HEC as source type. (ScoutDNS will be a source selection in the near future)
- Choose the organization to assign data to. It is recommended to choose a single parent org, otherwise you must repeat these steps to create an export for every organization. Organization data is still labeled with all queries.
- Name the source collection and save to generate your token.
From ScoutDNS

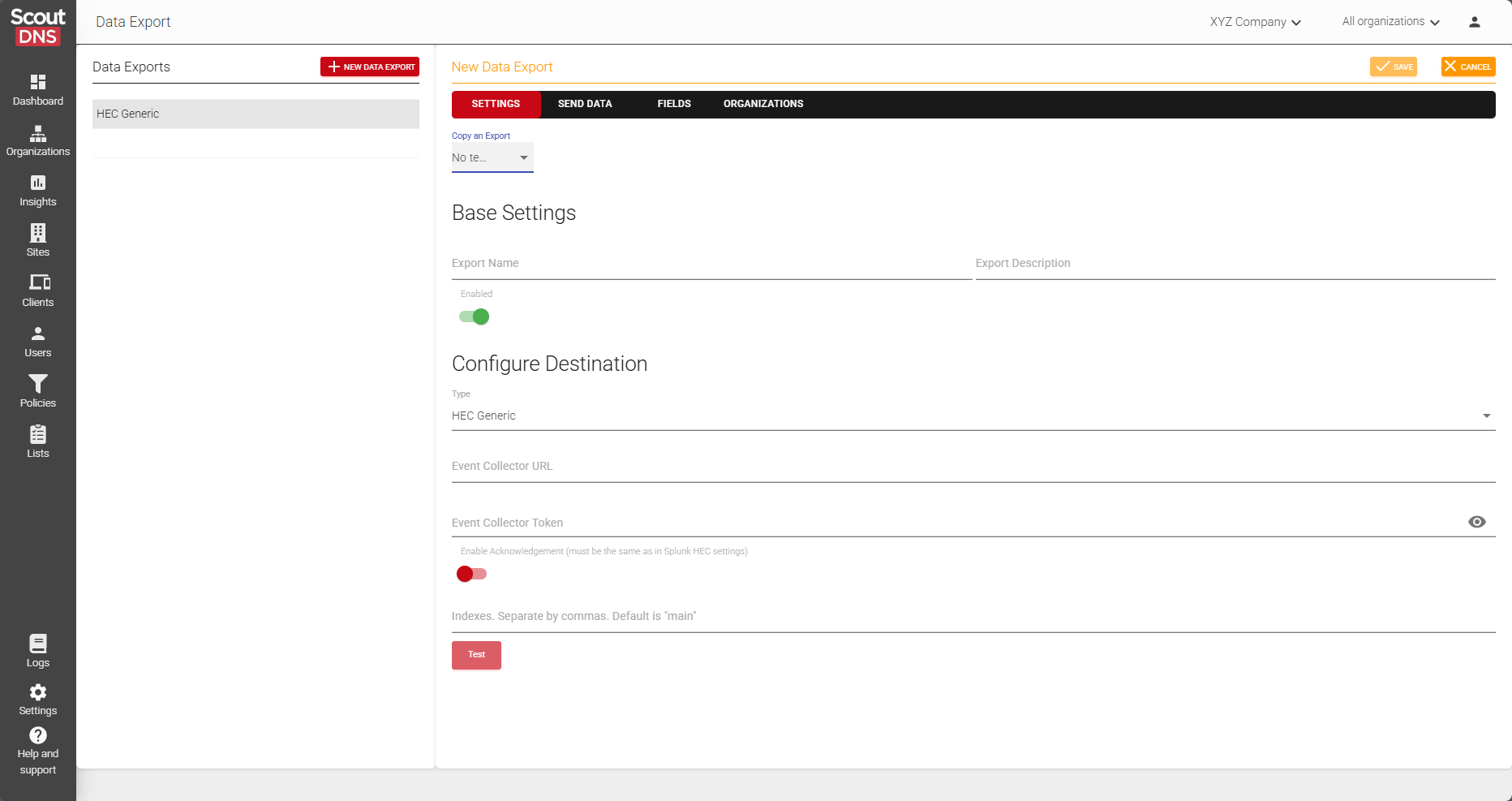

Navigate to Settings > Data Export and choose New Data Export
Settings Tab
Name your export and enter a description if desired
Under Configure Destination, Select Huntress as Type. This will populate the Event Collector URL automatically
From your Huntress portal, copy and paste the token generated earlier
You can use the Test button to ensure Token and account connect successfully.
Send Data Tab
It is recommended to send all query types
Fields Tab
ScoutDNS sets to ECS and this mapping cannot be changed

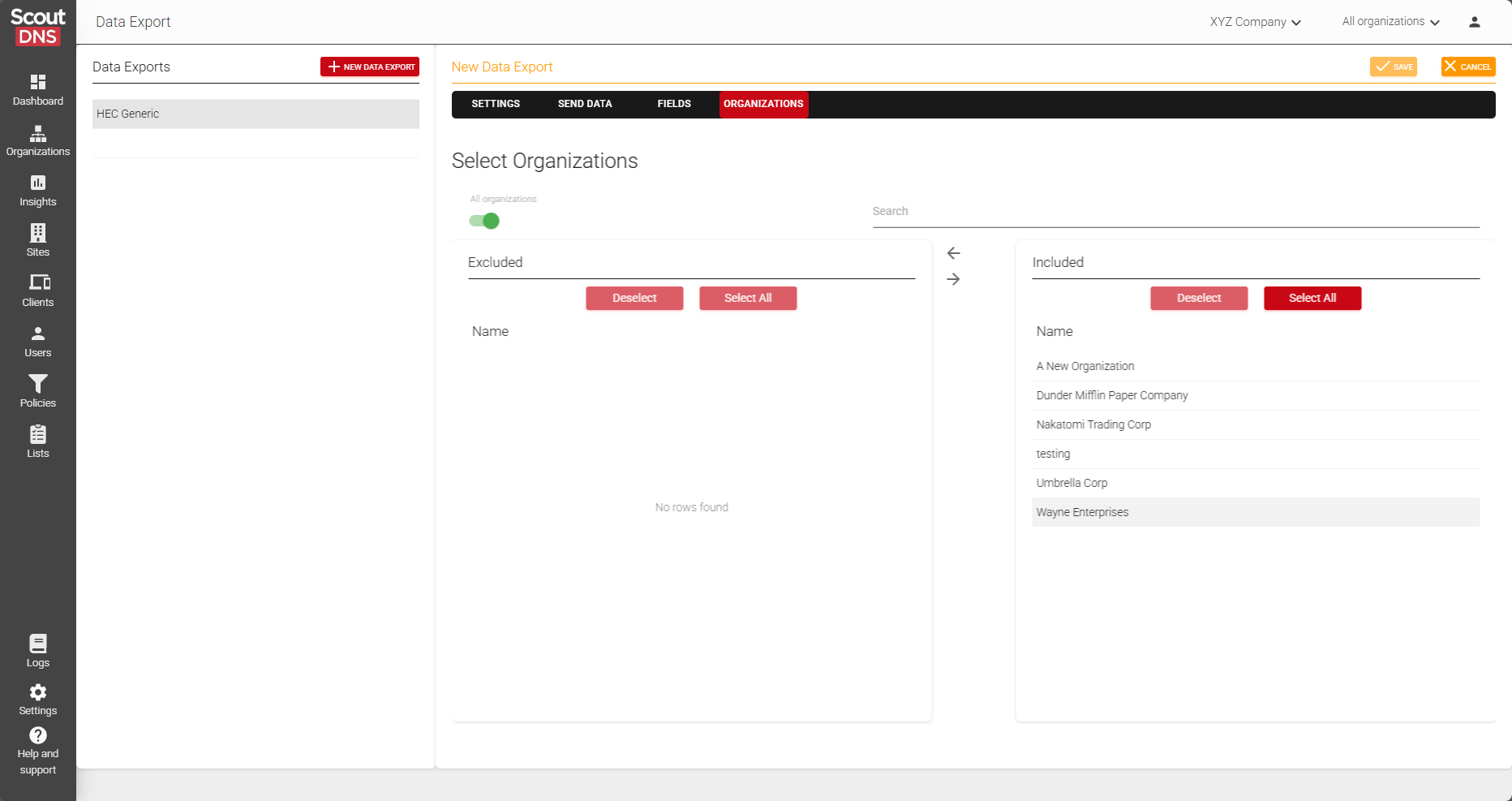

Organizations Tab
Select specific organizations or choose All Organizations.

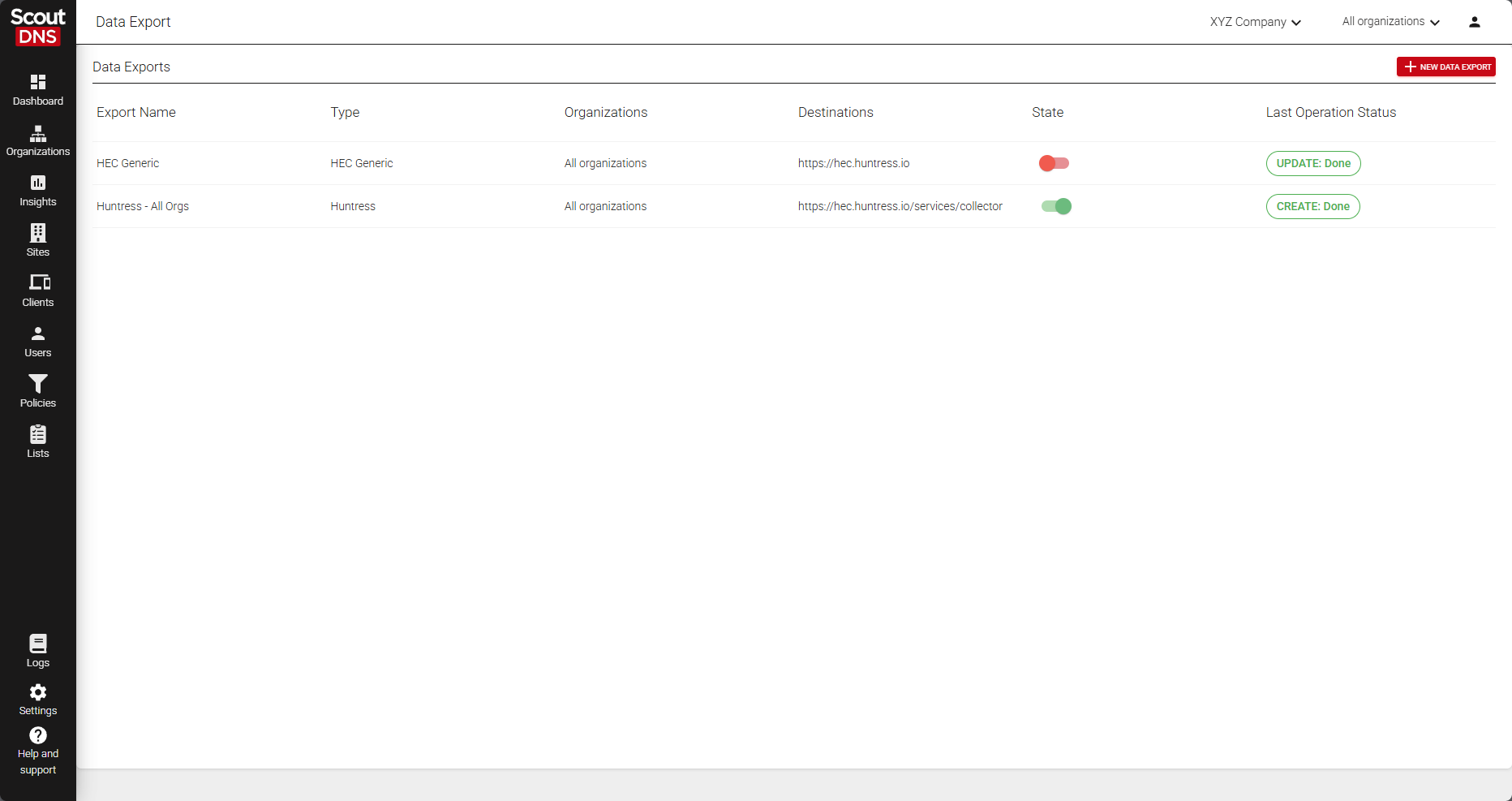

Press Save in the upper right corner and your data export will activate and start streaming right away. Data is sent in near real-time as queries are logged within ScoutDNS.
